high quality SAE100 R9 steel wire 4 layer hydraulic rubber hose
0 stars, based on 0reviews
Price:
$0.65 /
meter

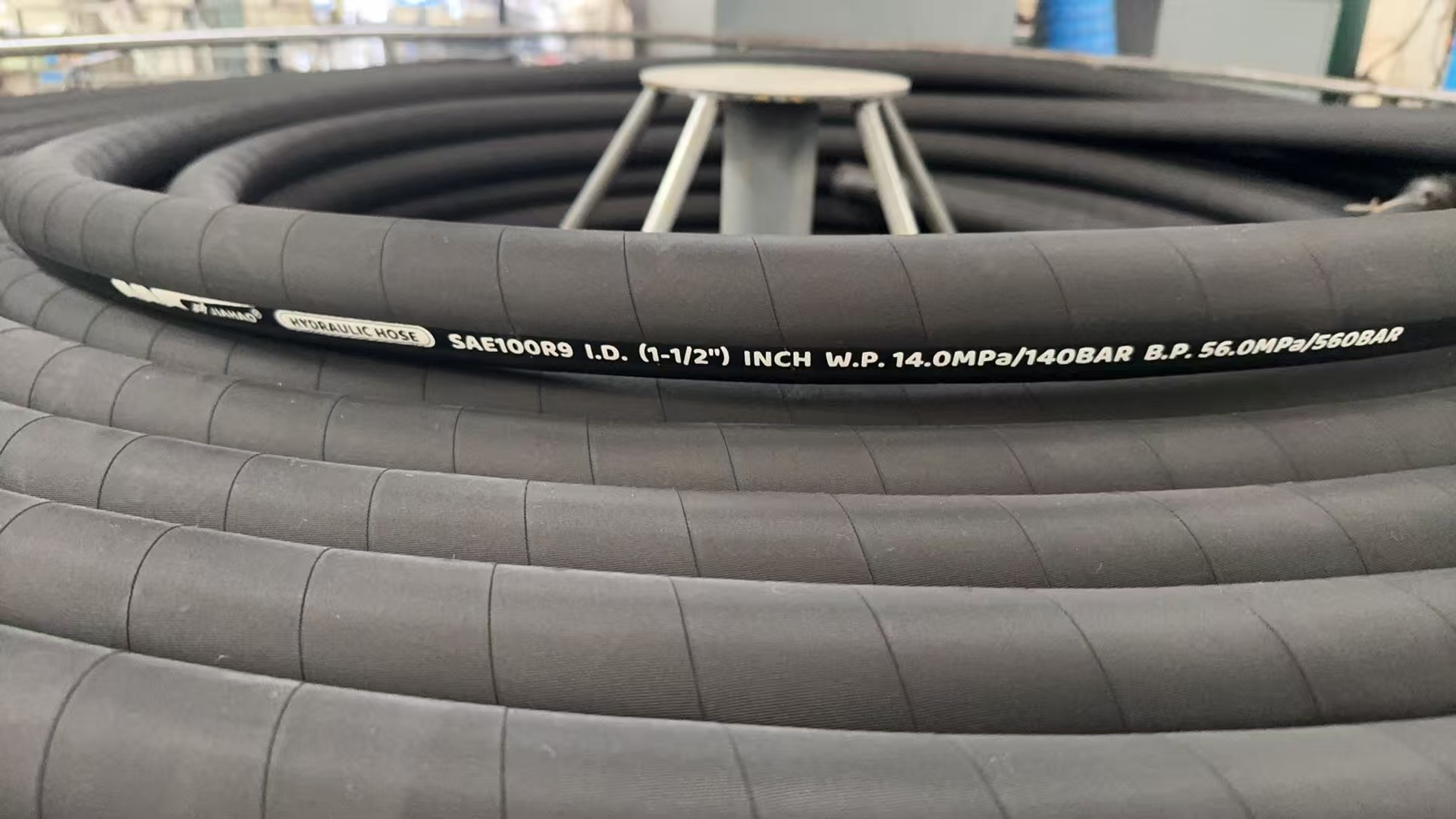

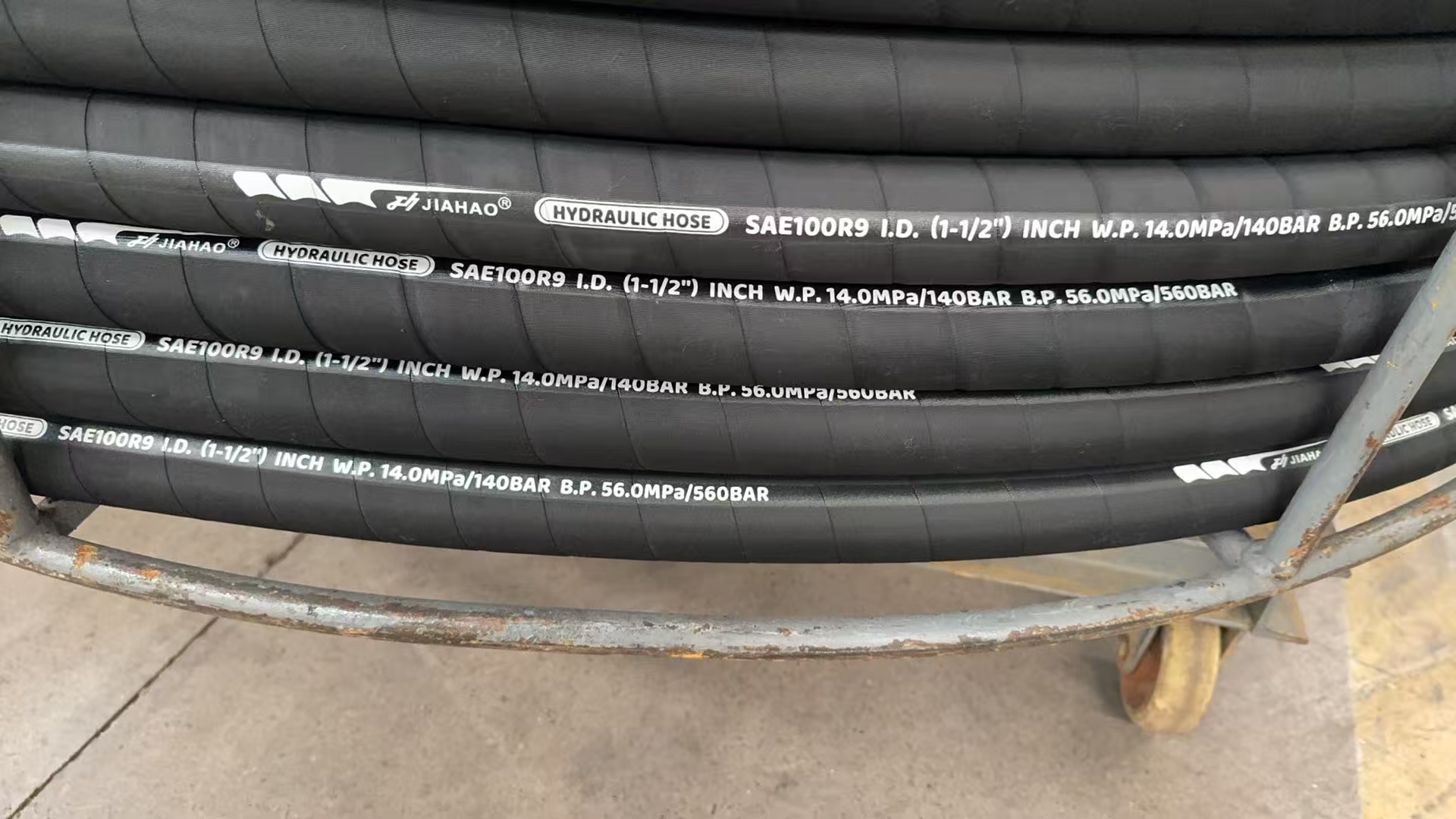

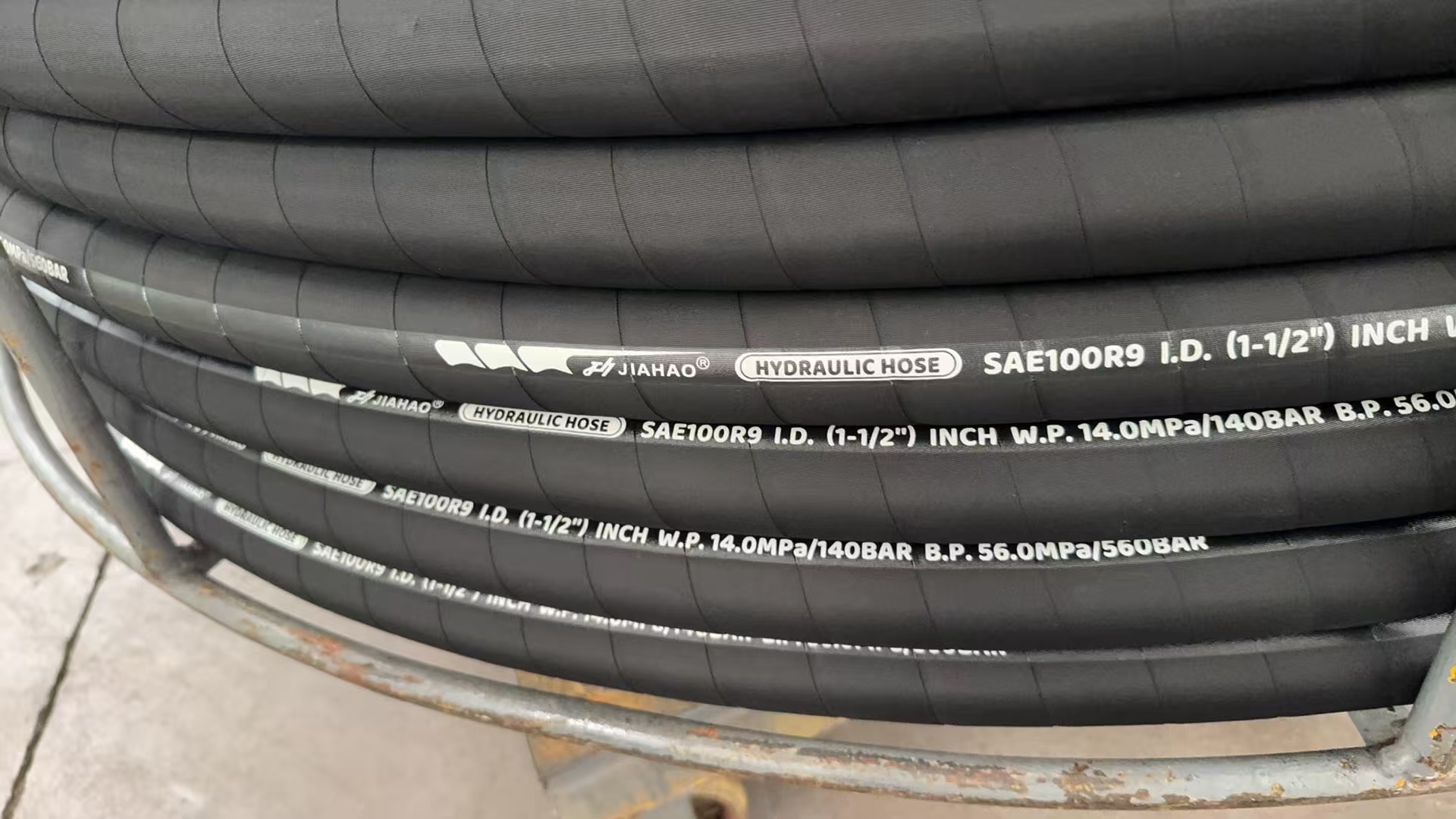

high quality SAE100 R9 hydraulic rubber hose
Spiral hose consists of one inner tube,one middle rubber layer,four or six
steel wire spiral reinforcement layers and a cover.The inner tube transmits
liquid under pressure and protects steel wire against corrosion and the cover
protects wire against damage.The wire layer (0.3-2.0 reinforcement)provides
reinforcement.
Size | Size | Inside diameter I.D | Reinforcement diameter W.D | Outside diameter O.D | Working pressure W.P | Proof pressure P．P | Burst pressure B.P | Min.bend radius Min B.R | weight W.T | |||||||||||
Type A | Type AT | |||||||||||||||||||
mm | Inch | Min | Max | Min | Max | Min | Max | Max | Mpa | Psi | Bar | Mpa | Psi | Bar | Mpa | Psi | Bar | Inch | mm | Kg/m |
10 | 3/8 | 9.3 | 10.1 | 16.9 | 18.0 | 20.6 | 22.2 | 21.1 | 31.5 | 4570 | 315 | 63 | 9135 | 630 | 126 | 18270 | 1260 | 4.92 | 125 | 0.70 |
12.5 | 1/2 | 12.3 | 13.5 | 19.4 | 21.0 | 23.8 | 25.4 | 24.3 | 28 | 4060 | 280 | 56 | 8120 | 560 | 112 | 16240 | 1120 | 7.09 | 180 | 0.83 |
19 | 3/4 | 18.6 | 19.8 | 26.6 | 28.2 | 30.6 | 32.2 | 31.9 | 21 | 3045 | 210 | 42 | 6090 | 420 | 84 | 12180 | 840 | 9.45 | 240 | 1.30 |
25 | 1 | 25.0 | 26.4 | 34.5 | 36.1 | 38.5 | 40.9 | 40.5 | 21 | 3045 | 210 | 42 | 6090 | 420 | 84 | 12180 | 840 | 11.81 | 300 | 1.70 |
31.5 | 1-1/4 | 31.4 | 33.0 | 43.3 | 45.6 | 49.2 | 52.4 | 50.7 | 17.5 | 2540 | 175 | 35 | 5075 | 350 | 70 | 10150 | 700 | 16.54 | 420 | 3.08 |
38 | 1-1/2 | 37.7 | 39.3 | 49.6 | 52.0 | 55.6 | 58.7 | - | 14 | 2030 | 140 | 28 | 4060 | 280 | 56 | 8120 | 560 | 19.69 | 500 | 4.30 |
51 | 2 | 50.4 | 52.0 | 63.9 | 66.2 | 69.9 | 73.0 | - | 14 | 2030 | 140 | 28 | 4060 | 280 | 56 | 8120 | 560 | 25.98 | 600 | 5.63 |
